How to Choose Electrical Protection Methods for Equipment?

Choosing the right electrical protection methods is essential for equipment safety, service continuity, and human protection. A motor cabinet, laboratory instrument, and outdoor pump face very different electrical risks. Moisture, dust, overloads, short circuits, heat, and accidental contact can each demand a different response.

A reliable selection process begins with the equipment’s real operating conditions. Engineers should examine voltage, current, fault levels, enclosure ratings, cable sizes, grounding arrangements, and expected maintenance practices. Fuses, circuit breakers, overload relays, residual-current devices, surge protectors, isolation switches, and protective enclosures may work together. They should not be selected from a catalogue alone. Coordination matters. A small fuse should clear a fault quickly, while upstream protection should avoid unnecessary shutdowns.

Details matter.

In practical inspections, a loose terminal, blocked ventilation path, or poorly labeled isolator can weaken an otherwise sound design. Experienced professionals verify calculations, review manufacturer instructions, and compare the installation with applicable IEC, UL, and local requirements. However, compliance by itself does not guarantee good protection. A certified device may still be unsuitable for high humidity or frequent motor starting. Even experienced teams sometimes overlook unusual operating cycles. That is worth questioning. This guide explains how to compare protection needs, evaluate design trade-offs, and choose measures that remain dependable during faults, maintenance, and everyday use. The best decision is not always the most expensive one. It is the one supported by evidence, tested assumptions, and clear responsibility.

Table of Contents [Hide]

1 Define Equipment Risks and Electrical Protection Requirements

2 Identify Applicable Protection Devices and Technologies

3 Match Protection Methods to Voltage, Load, and Operating Conditions

4 Plan Grounding, Coordination, and Fault-Response Measures

5 Verify Installation Safety Through Testing and Maintenance

Define Equipment Risks and Electrical Protection Requirements

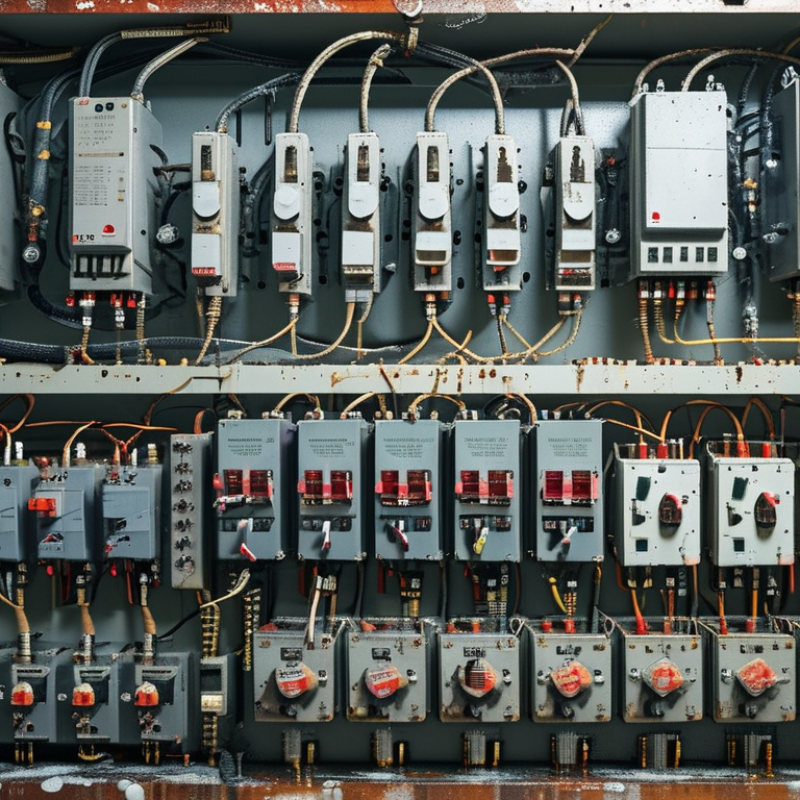

How to Choose Electrical Protection Methods for Equipment?

Define Equipment Risks and Electrical Protection Requirements

Effective protection starts with the equipment, not the protective device. Identify shock, short-circuit, overload, arc-flash, heat, moisture, dust, and mechanical risks. Check the supply voltage, operating current, prospective fault current, and duty cycle. A cabinet near a washdown area needs stronger enclosure protection than a dry indoor panel. Moving machinery also needs protection against unexpected restart.

Use inspection records, maintenance data, and manufacturer instructions to confirm real operating conditions. A qualified electrical professional should verify whether breakers, fuses, grounding, insulation, residual-current protection, and emergency isolation meet applicable electrical codes. Do not rely only on normal readings. A motor may draw acceptable current during testing, yet fail under heavy load. That detail is easy to miss.

Tips: Photograph cable routes before selecting protection. Mark heat sources, wet zones, and access points. Test protective devices under controlled conditions. Review fault ratings, because a device can fit physically but remain electrically unsuitable. Keep clear records of settings and inspection dates. A checklist helps, but it is not perfect. Human judgment still matters. During reviews, question assumptions and inspect the equipment while it operates. Small signs, such as warm terminals, unusual smells, or repeated trips, may reveal risks that drawings do not show.

Identify Applicable Protection Devices and Technologies

Choosing electrical protection starts with identifying the fault that must be interrupted. A fuse or circuit breaker handles overcurrent. An RCD detects leakage, while an SPD limits transient overvoltage. Motors need overload and phase-loss protection. Sensitive controls may require voltage monitoring. Isolated systems can benefit from insulation monitoring. Match every device with voltage, continuous current, prospective short-circuit current, and enclosure conditions. Check these values at the equipment terminals, not only at the distribution board.

The IEA’s Electricity 2024 report projects data-centre electricity demand above 1,000 TWh by 2026. This growth increases the need for selective coordination, surge protection, and thermal monitoring. IEEE 1584-2018 provides methods for estimating incident energy during arc-flash studies. Use those results to set boundaries, labels, and clearing times. A breaker with a high interrupting rating is not enough. Its trip curve must coordinate with upstream and downstream devices.

Protection plans are rarely perfect. Field reviews often find overheated terminals after a cabinet fan fails. Dust, moisture, repeated inrush, and loose connections can change the actual risk. The U.S. Bureau of Labor Statistics recorded 145 workplace electrical fatalities in 2022. A missed neutral or incorrect sensor ratio can defeat careful design. Document test intervals, verify settings after modifications, and inspect physical installation details. Safety depends on both the selected technology and its real operating condition.

Match Protection Methods to Voltage, Load, and Operating Conditions

How to Choose Electrical Protection Methods for Equipment?

Match Protection Methods to Voltage, Load, and Operating Conditions

Protection begins with the equipment’s actual electrical profile, not a convenient catalogue label. Record nominal voltage, phase arrangement, full-load current, starting current, and available fault current. A motor may draw modest running current but demand several times more during startup. A device sized only for normal operation may trip repeatedly or fail to interrupt a fault safely. Check conductor size, enclosure rating, and short-circuit current together. These are connected decisions.

Voltage changes the protection strategy. Low-voltage control circuits often need different fuses or breakers than power feeders. Higher-energy systems require verified interrupting ratings, suitable insulation clearances, and coordination with upstream protection. Load behavior matters too. Resistive heaters, transformers, motors, and capacitors produce different inrush patterns. Use overload protection for sustained excess current, while short-circuit protection must respond quickly to dangerous faults. Qualified electrical professionals should verify the selection against applicable codes and equipment data.

Operating conditions can expose hidden weaknesses. Dust, moisture, heat, vibration, and frequent switching may require stronger enclosures or adjusted ratings. A clean workshop assumption may be wrong. Field inspections often reveal blocked ventilation, loose terminals, or protection settings copied from another machine. That shortcut needs challenging. Review the equipment during startup, normal production, and shutdown. Test protective devices periodically, document the results, and reconsider the method when the load or environment changes.

How to Choose Electrical Protection Methods for Equipment

Match the protection method to the system voltage, expected load current, fault level, and operating conditions. Low-voltage installations commonly use RCDs, MCBs, and MCCBs, while medium-voltage systems generally require fuses or relay-controlled circuit breakers. Surge protection devices address transient overvoltages rather than sustained overloads or short circuits.

Plan Grounding, Coordination, and Fault-Response Measures

Electrical protection begins with a dependable path for fault current. Bond exposed metalwork to the protective earth conductor, then verify continuity at every joint. Do not rely on a ground rod alone. Measure loop impedance, confirm conductor sizing, and inspect connections for corrosion or looseness. Small details matter. A protective device cannot operate correctly when the return path is weak or uncertain.

Protection coordination should match the equipment’s real operating conditions. Compare prospective fault current with each device’s interrupting rating. Then review time-current curves to create selective operation, where practical. A downstream device should clear a local fault before an upstream device disconnects an entire panel. Motor starting currents, transformer inrush, and temperature changes can affect this decision. A neat study can still fail if field settings differ from the approved design.

Fault-response measures must be clear during commissioning and maintenance. Label isolation points, provide accessible disconnects, and define who can reset a tripped device. Test residual-current protection and emergency shutdown circuits at documented intervals. Keep records. Inspect terminals after vibration, heat, or water exposure. Field reviews often reveal an overlooked cable gland or an improperly tightened lug. That finding deserves more than a quick correction; it should trigger a design review. Local electrical codes and recognized engineering standards should guide final selections, with a qualified professional verifying the installation before energization.

Verify Installation Safety Through Testing and Maintenance

Electrical protection begins with a safe installation, but safety can weaken quietly over time. Loose terminals, damaged insulation, moisture, and overloaded circuits may remain invisible behind panels. Testing must therefore confirm more than initial continuity.

The U.S. Bureau of Labor Statistics recorded 126 fatal occupational electrical injuries in 2022. The Electrical Safety Foundation International also reported 2,950 non-fatal electrical injuries in 2020. These figures show why verification cannot stop after commissioning. Measure insulation resistance, protective conductor continuity, earth-fault loop impedance, and residual-current device operation. Record each result, the instrument used, and the test date. A failed reading needs isolation and investigation, not a quick reset.

Tips: Inspect cable entries for sharp edges. Check torque on accessible terminals. Test protective devices under controlled conditions. Compare readings with previous records, because gradual change often matters more than one abnormal value. Follow the equipment maker’s limits and NFPA 70B maintenance principles. Keep calibration certificates with the test report.

Maintenance schedules should reflect heat, dust, vibration, humidity, and switching frequency. Thermographic inspection can reveal a warm connection before visible damage appears, but it is not a complete diagnosis. A cool surface does not prove internal safety. I have seen teams trust clean panels too quickly; cleanliness can hide a loose connection rather than solve it. Independent review is valuable when readings conflict or operating conditions change.
